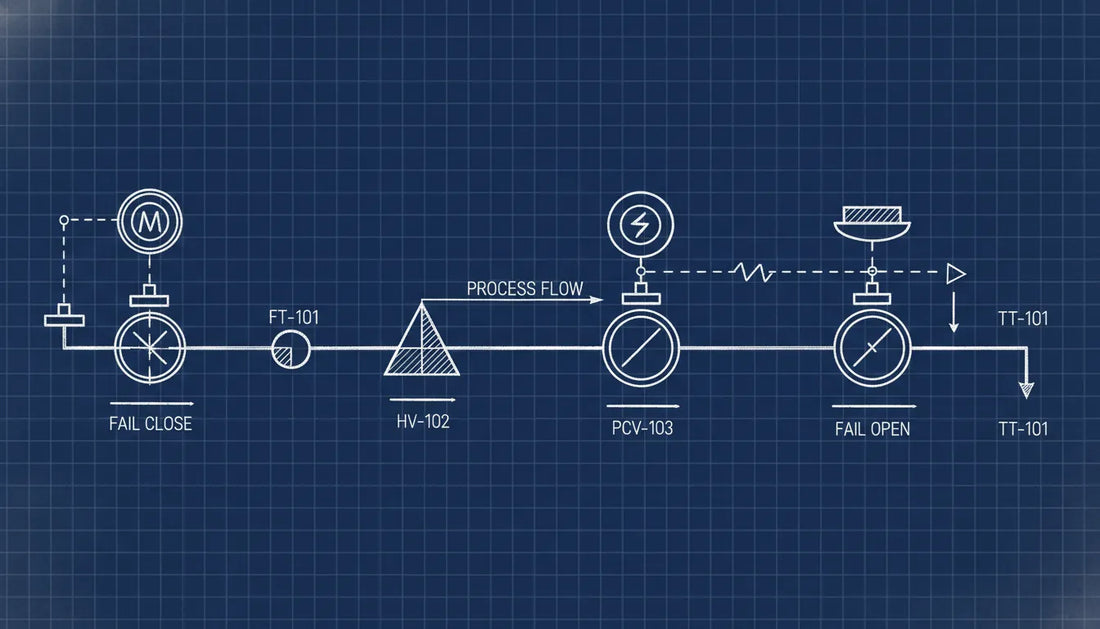

Symbols Valves Explained: How to Read Valve Symbols on P&IDs (Plus Actuator Types, Fail Positions, and Common Mistakes)
Why “symbols valves” matter more than you think
A P&ID can feel like a crowded city map—lines everywhere, tiny icons, and just enough abbreviations to slow you down. The catch is that symbols valves aren’t “nice-to-know”; they’re how engineering intent gets communicated to purchasing, fabrication, commissioning, and operations. Miss one detail (like actuator type or fail position) and you can end up with the wrong valve package, wrong I/O, or a shutdown that should’ve been avoidable.
I’ve reviewed valve automation submittals where the drawing symbol clearly implied a modulating control valve, but the spec was ordered as on/off. The symbol was right; the interpretation wasn’t. This guide breaks down symbols valves in plain language so you can read them fast, specify correctly, and troubleshoot confidently.
What are valve symbols on P&IDs (and what they actually communicate)?
On a Piping & Instrumentation Diagram (P&ID), valve symbols are compact “data packets.” A typical valve symbol can communicate:
- Valve type (ball, gate, globe, butterfly, plug, check, etc.)
- Function (isolation vs throttling/control vs safety/relief)
- Actuation (manual, electric, pneumatic, hydraulic)
- Control behavior (on/off vs modulating)
- Fail position (fail-open, fail-closed, fail-in-place)
- Accessories (solenoids, positioners, limit switches, smart feedback)
In other words, symbols valves are not just icons—they’re a specification shortcut.
The 4 building blocks of symbols valves (a quick mental model)
When I teach new engineers to read symbols valves, I ask them to scan in this order:
- Valve body shape: tells you the valve family (e.g., ball vs globe).
- Actuator symbol: tells you how it moves (manual, pneumatic, electric).
- Annotations/tags: tells you the role (e.g., FV-101 flow valve).
- Fail/action notes: tells you what happens on loss of power/air.
This sequence cuts misreads dramatically because you’re interpreting intent, not guessing based on one shape.
Common valve body symbols and when they’re used
Different companies and standards may draw symbols slightly differently, but the intent is consistent. Here’s how to interpret the most common ones in the field.
Isolation valves (start/stop flow)
Isolation valves are usually selected for tight shutoff and low pressure drop.
- Ball valve: fast quarter-turn isolation; common in utilities and skids.
- Gate valve: full-bore isolation on larger lines; not for throttling.
- Butterfly valve: compact, cost-effective for large diameters (water/air).
- Plug valve: good for dirty service depending on design.
If a symbol looks like a simple valve body without control accessories, it often implies manual or on/off duty unless annotated otherwise.
Control valves (throttling)
Control valves are for regulating flow/pressure/level/temperature. On P&IDs, they’re usually identified by:
- A control valve body (often globe-style in many symbol libraries)
- A tag like FV / PV / LV / TV
- An actuator and sometimes a positioner
If you see a control loop tag (e.g., FV-101) and a signal line to an instrument, assume modulating behavior unless the notes say on/off.
For deeper selection logic, AOX’s guide on control valve modulation onoff helps connect “symbol intent” to real actuator configuration.
Check valves (one-way flow)
Check valve symbols indicate non-return behavior. They’re easy to miss on busy drawings, but they’re critical for pump discharge lines, parallel trains, and backflow prevention.
Actuator symbols: the difference between manual, pneumatic, and electric (and why it affects procurement)
Actuator symbols are where many symbol-reading errors happen—especially when teams assume “motorized” and “electric actuator” are interchangeable. They’re not.
Manual actuation
Manual valves are shown with a handwheel/lever indicator. They’re simple, reliable, and common where automation isn’t needed.
Pneumatic actuation
Pneumatic actuator symbols often imply:
- Fast action
- Fail-safe options with spring return
- Need for instrument air, solenoid valves, and air sets
Electric actuation (motorized)
Electric actuator symbols imply:
- Power supply requirements (AC/DC, voltage, phase)
- Slower but controlled movement (depending on sizing and duty)
- Easier remote monitoring in many modern plants
If you’re choosing between smart and conventional packages, AOX’s comparison of smart vs traditional valve actuators is a practical reference for what “smart” changes in diagnostics and feedback—often hinted at by the symbol notes (position feedback, torque alarms, etc.).
Valve Failure Position: Fail Open Valve or Fail Closed Valve?
Fail position and action: what the symbol is trying to warn you about
In critical services (fuel gas, ESD, blowdown, chemical dosing), the most important part of symbols valves may be the fail state. You’ll typically see notes like:
- FO (Fail Open)
- FC (Fail Closed)
- FL (Fail Last / Fail In Place)
Practical implications:
- Pneumatic spring-return packages often support FO/FC by design.
- Electric actuators typically fail-in-place unless paired with UPS, capacitive backup, or a spring-return mechanism (less common and specialized).
From experience, the biggest field conflict happens when a drawing expects fail-closed but the ordered actuator is electric with no backup. The symbol “looked automated,” but the shutdown philosophy wasn’t met.
How symbols valves map to real actuator sizing and configuration
A symbol won’t show torque calculations, but it does imply what you must validate:
- Valve type + size + ΔP influences required torque/thrust.
- Duty (on/off vs modulating) affects motor duty rating, control card, and positioning.
- Environment (hazardous area, offshore) affects certification needs (e.g., ATEX).
- Feedback needs (position, torque, alarms) affect accessory selection.
If you’re selecting an electric actuator package based on the P&ID intent, this internal guide on select valve actuator electric motor is a solid next step for translating “symbol requirements” into motor/geartrain choices.
| Symbol Clue (actuator icon/tag/note) | Common Misread | Real Meaning | Field Impact | Corrective Action |
|---|---|---|---|---|
| “FO/FC/FL” note near valve/actuator | “Valve fails open/close regardless” | Fail action is for loss of motive power/signal (air/electric); “FL” = fail last | Wrong safety expectation; incorrect bypass/LOTO planning; incident risk | Verify fail position by actuator type + spring direction + air action; perform stroke test on loss of supply |
| Valve shown with positioner/I/P or signal bubble | “Any control valve is modulating” | Modulating requires actuator + positioner/controls; on-off uses open/close command only | Hunting/poor control or inability to throttle; wrong controller configuration | Confirm tag/loop type (CV vs XV); check for positioner/I/P and analog signal; align PLC/DCS logic and tuning |
| Actuator symbol: diaphragm “dome” vs piston/cylinder | “Both are the same pneumatic actuator” | Diaphragm typically spring-return, shorter stroke/lower thrust; piston higher thrust/longer stroke, may be double-acting | Undersized/oversized actuator; valve won’t seat or won’t move under ΔP | Match actuator to required thrust and stroke; confirm air supply/volume; review sizing sheet and torque/thrust calcs |
| Electric actuator (motor/gear) vs solenoid coil on valve | “Solenoid means electrically actuated valve body” | Solenoid usually pilots air/hydraulic or shifts a spool; electric actuator directly drives valve stem | Miswired controls; no movement due to missing air; wrong spare parts | Identify whether solenoid is pilot (needs air) or direct-acting; verify wiring, air supply, and pilot tubing; update I/O list |
| Positioner shown vs not shown (no positioner symbol) | “If not shown, there is no position feedback/control” | P&ID may omit positioner/feedback for simplicity; may still be present on skid/vendor package | Missing calibration/maintenance steps; unexpected split-range or characterization | Field-verify actuator accessories (positioner, limit switches, transmitter); check vendor drawings and loop diagrams; update as-builts |
Most common mistakes when reading symbols valves (and how to avoid them)
Even experienced teams make these errors because different EPCs and plants use slightly different symbol libraries.
-
Mistaking solenoid symbols for electric actuators
A solenoid usually pilots air for a pneumatic actuator; it does not mean the valve is motor-driven. -
Assuming all automated valves are control valves
Many automated valves are simply on/off isolation with limit switches. -
Ignoring fail position notes
FO/FC matters as much as valve size in safety-critical lines. -
Overlooking accessories
Positioners, I/P converters, and smart modules change wiring, air sets, and commissioning steps. -
Not cross-checking tag conventions
FV vs XV vs SDV often indicates very different intent (control vs on/off vs shutdown).
A good habit is to verify the symbol against the instrument index and valve list before ordering.
Where AOX fits: turning symbols valves into reliable automation packages
Reading symbols valves correctly is only half the job—the other half is delivering the actuator + valve package that matches the drawing intent and survives the real site conditions. AOX (Zhejiang Aoxiang Auto-Control Technology Co., Ltd.) focuses on industrial-grade electric and pneumatic valve actuators and valves designed for demanding applications in petroleum, chemicals, water treatment, new energy, and offshore environments.
From what I’ve seen in automation projects, buyers care about a few practical outcomes: predictable delivery, correct certifications, and fewer commissioning surprises. AOX supports that with CE/ATEX certified actuator options, robust overload protection, remote monitoring-ready designs, factory-direct pricing that can reduce total cost, and responsive technical support for sizing and configuration—especially when a P&ID symbol leaves room for interpretation.
For standards and symbol conventions, these references are widely used:
- Valve symbols in P&ID diagrams (Tameson)
- Most common control valve symbols on a P&ID (Kimray)
- U.S. VA TIL valve symbol reference PDF
Quick checklist: interpret symbols valves correctly before you order
Use this before RFQs, especially when multiple stakeholders touch the drawing.
- Confirm valve function: isolation, control, shutdown, check, relief.
- Confirm actuator type: manual, pneumatic, electric, hydraulic.
- Confirm control mode: on/off or modulating (look for loop tags and signal lines).
- Confirm fail position: FO/FC/FL and the method (spring return, backup power).
- Confirm hazardous area/environment: ATEX/IECEx needs, ingress protection, corrosion class.
- Confirm feedback/accessories: position transmitter, limit switches, torque alarms, comms.
Conclusion: symbols valves are the language of plant intent
If a P&ID could talk, it would speak in symbols valves—quietly but precisely. When you learn to read them as intent (body + actuator + tag + fail action), you reduce wrong orders, speed up commissioning, and make maintenance safer. I’ve found the biggest wins come from small habits: always check fail position, always confirm modulating vs on/off, and always align symbol meaning with the valve list.
If you’re updating drawings, planning a retrofit, or standardizing actuator packages across sites, share your toughest symbol question in the comments—or send your valve list notes to your automation team for a second set of eyes.
FAQ: symbols valves
1) What does “symbols valves” mean on a P&ID?
It refers to the standardized valve symbols used on P&IDs to show valve type, actuation method, control function, and sometimes fail position and accessories.
2) How can I tell if a valve symbol is on/off or modulating?
Look for a control loop tag (e.g., FV/PV/LV/TV), signal lines to instruments, and notes indicating positioner or control function. On/off valves often use tags like XV or SDV depending on site convention.
3) Do electric actuator symbols imply fail-open or fail-closed?
Not automatically. Many electric actuators fail-in-place unless the design includes backup power or a special fail-safe mechanism. Always look for FO/FC/FL notes.
4) What’s the difference between a solenoid symbol and an electric actuator symbol?
A solenoid typically pilots air to a pneumatic actuator (it’s part of the control accessory chain). An electric actuator is a motor-driven device that directly moves the valve.
5) Why do valve symbols differ between companies?
Different EPCs and owners use different symbol libraries and standards. The meaning is usually consistent, but the drawing style can vary—so cross-check with the legend, valve list, and instrument index.
6) What valve symbols are most common in water treatment plants?
Butterfly and gate valves are common for isolation, with electric actuators frequently used for remote operation. Control valves appear in dosing, pressure control, and filtration/backwash systems.
7) What should I verify before ordering actuators based on symbols valves?
Verify valve duty (on/off vs modulating), required fail position, environmental certifications (e.g., ATEX), torque/thrust requirements, and required feedback signals for the control system.
