Pinch Valve Explained: How It Works, Where It Fits, and How to Choose the Right One
What a Pinch Valve Really Does (and Why Plants Rely on It)
A pinch valve is the “bouncer” of tough flow media: it controls or stops flow by pinching a flexible sleeve/tube rather than moving metal parts through the fluid. If you’ve ever dealt with abrasive slurry that destroys seats, or powders that jam traditional valves, a pinch valve feels like a relief. I’ve specified pinch valves in slurry and wastewater lines where other valve types kept leaking after solids packed into the sealing surfaces. The key benefit is simple: the sleeve is usually the only wetted part, so the body and moving components stay protected.

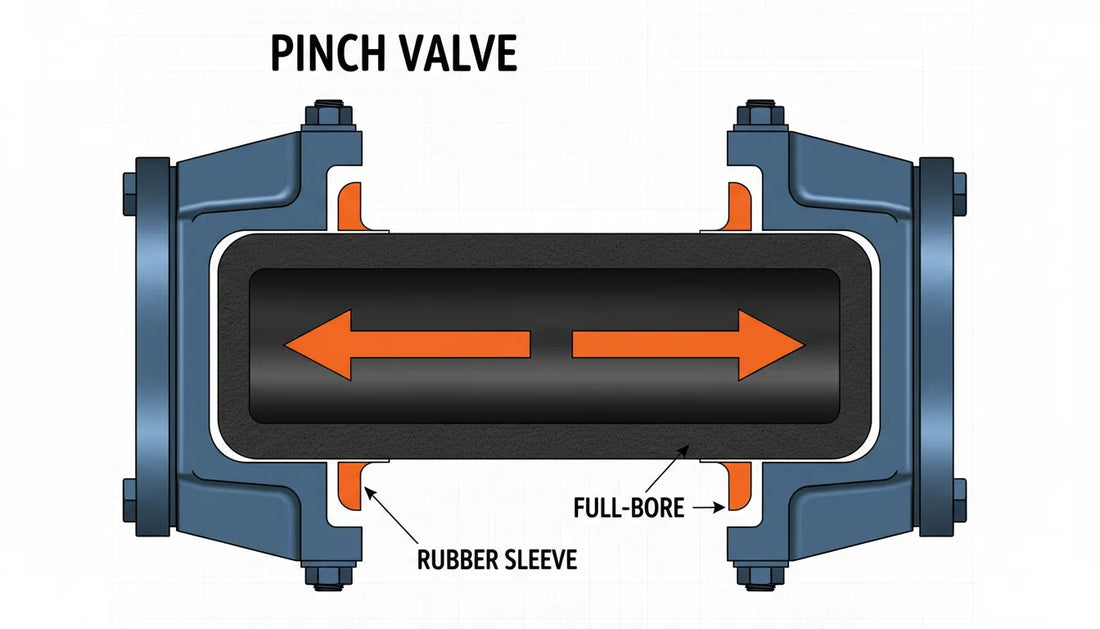

How a Pinch Valve Works (Plain-English Mechanics)
A pinch valve uses an elastomer sleeve (or a section of tubing) that gets compressed to restrict flow. In the open position, most pinch valves provide near full-bore flow, meaning fewer places for solids to settle. In the closed position, the sleeve collapses and can seal even with entrained solids, which is why pinch valves are common in mining, wastewater, and chemical handling.
Common actuation methods include:
- Air-operated (pneumatic) pinch valves: air pressure collapses the sleeve to close.
- Mechanical pinch valves: a cam/lever or screw pinches the tube/sleeve.
- Hydraulic pinch valves: similar to pneumatic but using hydraulic pressure for higher force.
For air-operated designs, many suppliers reference a rule of thumb that closure pressure is line pressure plus a margin (often cited as ~25 psi over line pressure for full closure in some designs), but you should always confirm with the manufacturer for your sleeve material, size, and duty cycle.
Authoritative references for further reading:
- Pinch valve – how they work (Tameson)
- Air operated pinch valve basics (Red Valve)
- Pinch valve overview (Wikipedia)
Where a Pinch Valve Beats Other Valve Types
A pinch valve is often the best option when the media is hard on metal internals or likely to clog. In real plants, the “best valve” is usually the one that fails least often under ugly conditions, not the one with the fanciest trim.
Pinch valves shine in:
- Abrasive slurries (mining tailings, lime slurry, sand-water mixes)
- Fibrous or stringy media (pulp, textile fibers)
- Powders and granules (cement, pellets, carbon black)
- Corrosive fluids where isolation from metal parts reduces attack
They’re also useful when contamination risk matters, because the fluid can be isolated inside the sleeve/tube.
Types of Pinch Valve Designs (and What to Pick)
Not all pinch valves are the same. The body style affects pressure capability, maintenance, and how well the valve handles harsh environments.
Typical pinch valve categories:
- Open-body pinch valve: lighter, often easier sleeve access; common in general slurry service.
- Enclosed/closed-body pinch valve: better protection and often higher pressure capability.
- Split-body pinch valve: faster sleeve replacement in some designs.
- Small tubing pinch valves (instrumentation/lab): pinch silicone/PharMed® tubing for dosing and sampling.
Selection tip I use: if your plant has frequent sleeve swaps, choose a design that makes sleeve replacement quick and predictable—downtime costs more than the valve.
Air Operated Pinch Valve Animation
Pinch Valve Selection Checklist (What Engineers Should Verify)
Before you purchase a pinch valve, confirm these parameters. This prevents the most common “it worked in the catalog” failures.
1) Media and solids profile
- Particle size distribution (fine silt vs sharp grit)
- Solids percentage and settling behavior
- Fibers/stringy contaminants that can bridge
2) Pressure and temperature
- Normal and maximum line pressure
- Required shutoff class (bubble-tight vs acceptable seepage)
- Temperature range (affects sleeve life)
3) Sleeve material compatibility
Sleeves are consumables. Choose based on chemical compatibility and abrasion:
- Natural rubber (abrasion resistance in many slurries)
- EPDM (water, mild chemicals)
- NBR (oils)
- Specialty elastomers for aggressive chemicals
4) Control requirement (on/off vs throttling)
Pinch valves can throttle, but sleeve wear increases if you run them half-pinched continuously with abrasive slurry. If you need frequent modulation, consider the control strategy and expected sleeve replacement interval.
For actuator and control concepts that often apply in automated valve packages, these AOX guides are useful:
- control valve modulation onoff
- pneumatic vs electric valve actuator
- select electric actuator for control valve
Automation: How Pinch Valves Integrate into Modern Plants
Many pinch valves are air-operated with the “actuator” integrated into the body (air pressure directly compresses the sleeve). But in automated systems, you still need a complete control architecture: solenoids, position feedback (if modulating), and plant-level monitoring.
In projects where remote diagnostics mattered, I’ve seen the biggest gains come from:
- Clear failure modes (pressure loss behavior, fail-safe position)
- Simple maintenance (sleeve swap kits, standardized spares)
- Monitoring (air supply quality, cycle counts, abnormal closure time)
AOX’s broader automation context—high-speed actuation, overload protection, and remote monitoring—fits plants that want predictable uptime across petroleum, chemical, water treatment, new energy, and offshore environments. When pinch valves are part of a larger automated skid, consistent actuator/control standards reduce commissioning time and spare-part complexity.
| Valve Type | Best For | Key Pros | Key Cons | Typical Maintenance Item |
|---|---|---|---|---|
| Pinch Valve | Highly abrasive slurries; solids-laden flow | Full-bore; minimal clogging; sleeve isolates mechanism | Sleeve wear; limited high-temp/high-pressure capability | Elastomer sleeve replacement |
| Knife Gate Valve | Thick slurry; fibrous solids; on/off service | Good shutoff with solids; compact face-to-face | Not ideal for throttling; packing/seat wear; potential leakage | Packing adjustment/replacement; seat wear |
| Ball Valve | Clean-to-moderately dirty slurry; isolation | Tight shutoff; quick operation; durable in some liners | Cavitation/erosion at seats; can trap solids; higher torque | Seat and seal kit replacement |
| Butterfly Valve | Large diameters; low-to-medium solids slurry | Lightweight; cost-effective; low pressure drop | Disc erosion; not great for heavy solids; sealing wear | Liner/seat replacement |
| Diaphragm Valve | Corrosive + abrasive slurry; throttling | Excellent sealing; isolates stem/bonnet; good control | Diaphragm wear; pressure/temperature limits | Diaphragm replacement |
Common Pinch Valve Problems (and Practical Fixes)
A pinch valve is simple, but not foolproof. Most issues trace back to sleeve selection, air supply, or using the valve outside its “sweet spot.”
Top issues and what to do:
-
Sleeve wears too fast
- Use a more abrasion-resistant elastomer, reduce throttling duty, or verify velocity isn’t excessive.
-
Valve won’t fully close
- Check available closing pressure vs line pressure; inspect sleeve for permanent set or swelling.
-
Frequent sleeve tearing
- Look for sharp solids, misalignment, or over-stroking/over-pressurizing; confirm correct sleeve size.
-
Poor control stability in throttling
- Add position control strategy, consider different valve type for continuous modulation, or use staged control logic.
-
Air quality issues (pneumatic systems)
- Improve filtration/drying; contaminated air accelerates wear in pneumatic components upstream of the valve.
Pinch Valve Applications by Industry (Real-World Fit)
A pinch valve is rarely chosen for clean, high-pressure hydrocarbon service; it’s chosen because the media is difficult and uptime matters.
Where it’s commonly deployed:
- Mining & minerals: tailings, abrasive slurry transfer, thickener underflow
- Water & wastewater: sludge, grit, lime dosing, polymer lines
- Chemicals: corrosive slurries where isolation reduces metal exposure
- New energy & process plants: solids-laden process streams and byproduct handling
If your plant is standardizing automation hardware across multiple valve types, AOX’s actuator portfolio (CE/ATEX options, fast delivery, low MOQ, and technical support) can help streamline packages—especially where you’re mixing pinch valves with other automated valves on the same site.
Why AOX Is a Strong Partner for Automated Flow Control Projects
Even when the pinch valve itself is air-operated, plants still need reliable automation around it—control logic, actuator selection for other valves in the same process area, and consistent support. AOX (Zhejiang Aoxiang Auto-Control Technology Co., Ltd.) brings 30+ years of industrial automation experience, 71 patents, and CE/ATEX certified solutions used in demanding sectors like petroleum, chemicals, water treatment, new energy, and offshore. In my experience, the suppliers that win long-term are the ones that can support commissioning fast and keep spares and documentation tight—especially when you have hundreds of valves across multiple units.
AOX’s practical advantages for project execution include:
- Factory-direct pricing (often reducing procurement cost)
- Fast lead times (commonly 15-day delivery for many configurations)
- Low MOQ (as low as 5 units)
- Technical support for selection, integration, and troubleshooting
Conclusion: Is a Pinch Valve the Right Choice?
A pinch valve is the dependable “workhorse” when your media is abrasive, corrosive, granular, or prone to clogging—and when you want a simple design where the sleeve takes the abuse instead of expensive internals. If you’re fighting chronic leakage, jammed seats, or maintenance headaches in slurry lines, a pinch valve is often the cleanest reset. I’ve seen plants cut downtime dramatically just by matching sleeve material and closure pressure to real operating conditions, not just nominal specs.
FAQ: Pinch Valve Questions People Search
1) What is a pinch valve used for?
A pinch valve is used to control or shut off flow of abrasive slurries, powders, granules, and corrosive media—especially where clogging or erosion is common.
2) Can a pinch valve throttle flow, or is it only on/off?
It can throttle, but continuous throttling with abrasive slurry can shorten sleeve life. For heavy modulation duty, validate the expected sleeve wear rate.
3) What is the main advantage of a pinch valve?
The sleeve is typically the only wetted part, reducing corrosion/abrasion damage to the valve body and improving reliability with solids.
4) How do I choose the right sleeve material for a pinch valve?
Match the elastomer to chemical compatibility, temperature, abrasion severity, and duty cycle. When in doubt, test a sleeve material in a pilot line.
5) Why won’t my pneumatic pinch valve fully close?
Common causes include insufficient closing pressure relative to line pressure, a worn/swollen sleeve, or incorrect sizing/installation misalignment.
6) Are pinch valves good for high pressure?
Some enclosed-body designs handle higher pressures, but pinch valves are generally selected for difficult media rather than extreme pressure. Confirm pressure ratings and closure requirements with the manufacturer.
7) How often does a pinch valve sleeve need replacement?
It depends on abrasion, throttling frequency, and sleeve material. Many plants treat sleeves as consumables and stock spares based on cycle counts and slurry severity.
