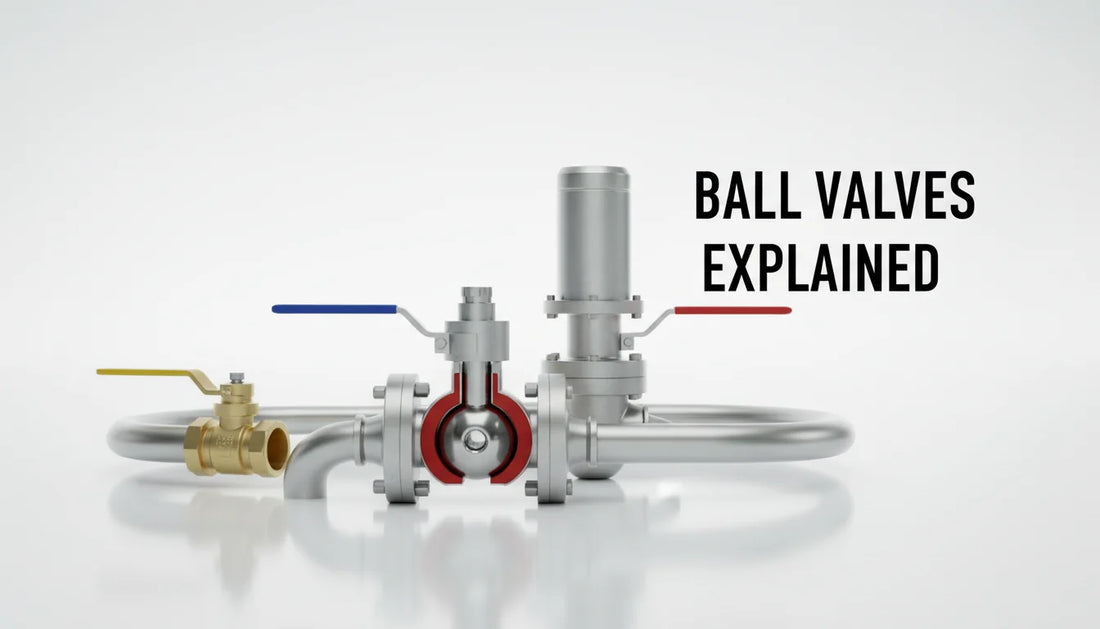

Ball Valves Explained: How They Work, How to Choose, and When to Automate (Industrial Guide)
What are ball valves—and why do they show up everywhere?
A ball valve is the “no-drama” workhorse of flow control: a quarter-turn valve that uses a drilled, rotating ball to start or stop flow fast. If you’ve ever needed a clean shutoff you can trust—especially under pressure, with corrosive fluids, or in remote plants—ball valves are often the first shortlist item. In real projects, I’ve leaned on ball valves when operators needed quick isolation, low leakage, and simple visual confirmation (handle aligned with the pipe means open).
But the moment you scale from a manual skid to a refinery unit or a water treatment network, the questions change: Which seat material survives? What valve design is maintainable? Do you need an electric actuator or pneumatic? And how do you avoid “it worked in the shop” failures in the field?
How ball valves work (in plain engineering terms)
Ball valves operate with a 90-degree rotation. When the hole through the ball aligns with the pipe, flow passes; when rotated perpendicular, the solid side blocks flow. That simple geometry is why ball valves deliver rapid shutoff and typically low pressure drop when fully open.
Key functional elements that determine performance:
- Ball: floating or trunnion-mounted; surface finish impacts sealing and torque.
- Seats: soft (PTFE/RPTFE) for tight shutoff; metal seats for high temp/abrasive service.
- Stem & packing: controls fugitive emissions and long-term reliability.
- Body design: affects maintenance, weight, and leak paths.
For a quick reference on general definitions and variants, see Ball valve.
Types of ball valves (and what each is best at)
Choosing among ball valves is less about brand and more about matching duty + maintenance philosophy + automation needs.
1) Floating vs trunnion ball valves
- Floating ball valve: ball “floats” and presses into the downstream seat under pressure; great for smaller sizes and many general services.
- Trunnion ball valve: ball is supported by trunnions; reduces operating torque and seat load; preferred for larger sizes/high pressure pipelines.
2) Full port vs reduced port
- Full port: bore matches pipe ID—best when you need low pressure drop, pigging, or minimal turbulence.
- Reduced port: smaller bore—often lower cost and weight; acceptable for many isolation duties.
3) Two-piece, three-piece, and top-entry
- Two-piece: common and economical, but maintenance may require line removal.
- Three-piece: easier in-line maintenance; popular in process plants.
- Top-entry: serviceable from the top; valuable for critical lines where downtime is expensive.
4) V-port ball valves (control duty)
Standard ball valves are primarily for on/off. If you need throttling, a V-port ball valve can provide more stable control—though you still must validate cavitation, noise, and seat wear.
Ball valve materials and seat selection (where most mistakes happen)
In industrial automation projects, I’ve seen “mystery leaks” traced back to a seat material that was fine at room temperature but failed under real thermal cycles. Material selection should start with fluid compatibility, temperature, pressure, and solids content.
Common body materials:
- Carbon steel: robust, cost-effective for many hydrocarbons and utilities.
- Stainless steel (304/316): corrosion resistance; 316 often preferred in chlorides.
- Brass/PVC/CPVC: common in building services, water, and some chemical duty (verify compatibility).
Seat options (simplified):
- PTFE/RPTFE: tight shutoff, broad chemical compatibility; temperature limits apply.
- PEEK: higher temperature and wear resistance; higher cost.
- Metal seats: high temperature/abrasion; may trade bubble-tight shutoff for durability.
For a practical anatomy-focused breakdown, What is a Ball Valve? Anatomy and Function is a useful reference.
When (and when not) to use ball valves
Ball valves are excellent for:
- Emergency isolation and fast shutoff
- High-cycle on/off service (when torque and seat wear are managed)
- Remote lines where simple open/close logic reduces operator error
- Dirty service (with the right design) compared to some globe/control valves
Ball valves can be a poor fit for:
- Precise throttling with standard porting (risk of seat erosion and unstable control)
- Severe cavitation/flashing without engineered trims
- Slurry/abrasive applications unless specifically designed (metal-seated, proper coatings, purge options)
Automating ball valves: electric vs pneumatic actuation
Once you automate ball valves, the valve is only half the system. The actuator choice affects speed, safety behavior, diagnostics, and total cost of ownership.
Electric actuated ball valves (best when power + control are available)
Electric actuation is a strong fit when you want:
- Remote monitoring, position feedback, and easy integration with PLC/SCADA
- Stable torque control and overload protection
- Lower dependency on instrument air quality
AOX’s market positioning aligns here: electric actuators designed for dynamic braking, overload protection, and remote monitoring, with CE/ATEX options for hazardous areas, and factory-direct economics that can reduce procurement cost.
Pneumatic actuated ball valves (best for speed and fail-safe behavior)
Pneumatics are often chosen for:
- Fast cycling
- Simple fail-open/fail-close behavior using spring-return
- Hazardous environments where electrical simplification matters (still requires proper controls)
If you’re deciding between actuator types specifically for ball valves, this internal guide is directly relevant: ball valve electric vs solenoid actuator.
The future light of valve --Multi-turn electric flange ball valve
Sizing and torque: the hidden reason actuated ball valves fail
A common failure pattern is “it works unloaded, then stalls under pressure.” That’s usually torque margin, not wiring. Ball valve torque depends on:
- Differential pressure (ΔP) and seat load
- Media viscosity and solids
- Temperature (seat friction changes)
- Cycle frequency and dwell time
Practical rules I use on projects:
- Get real valve torque curves (breakaway, running, end) from the valve maker—don’t guess.
- Add service factor for fouling and aging (often 1.25–2.0 depending on duty).
- Validate actuator output at minimum supply voltage/air pressure and worst-case ambient temperature.
- Confirm the actuator is correct for quarter-turn duty. (Ball valves are quarter-turn, not multi-turn.)
For actuator selection logic, this internal explainer helps frame the decision: quarter vs multi turn valve actuator.
Common ball valve problems (and how to fix them fast)
Most ball valve issues are predictable if you watch the symptoms early—especially in automated lines.
| Symptom | Likely Cause | Quick Check | Recommended Fix |
|---|---|---|---|
| External stem leak | Worn/damaged stem packing or O-rings; loose gland follower | Inspect for wetness around stem; verify packing gland torque; check stem scoring | Tighten gland evenly to spec; replace packing/O-rings; repair/replace stem if scored |
| Internal leakage past seat | Seat wear; debris on ball/seat; scratched ball; insufficient line pressure for soft seat | Perform downstream leak test; cycle valve and flush line; inspect ball/seat if accessible | Flush/clean; cycle to clear debris; replace seats (and ball if damaged); verify valve rating/service suitability |
| Actuator stalls / high torque | Fouled valve (scale/solids); dry/swollen seats; misalignment; actuator undersized or air supply low | Measure actuator supply pressure/voltage; compare breakaway torque vs actuator rating; try manual override for binding | Clean/overhaul valve internals; lubricate per manufacturer; correct alignment/mounting; increase supply or resize actuator |
| Slow operation | Restricted air line/solenoid; low supply pressure; clogged filter/regulator; hydraulic flow restriction | Check regulator/FRL and pressure at actuator; inspect tubing/valve ports; verify solenoid function | Restore proper supply; clean/replace FRL elements; upsize lines/valves; service solenoid or positioner |
| Water hammer after closure | Closing too fast; high flow velocity; inadequate surge control | Observe pressure spikes; review closing time settings; check for missing dampeners/accumulators | Slow closure (stroke control); install anti-surge device (snubber/accumulator); adjust system velocity/support piping |
| Corrosion on body/bolts | Material incompatibility; coating damage; galvanic corrosion; environmental exposure | Inspect coating/paint; check for dissimilar metals; assess fluid chemistry and external environment | Replace with suitable materials/fasteners; recoat/paint; add isolation washers; improve drainage/insulation and apply corrosion inhibitor |
High-value checks that reduce downtime:
- Internal leakage: inspect seat wear, debris scoring, or thermal damage; confirm correct seat material.
- Stem leakage: packing adjustment or replacement; check stem finish and alignment.
- High torque/stalling: verify ΔP conditions, seat swelling, fouling; confirm actuator sizing and mechanical coupling.
If you’re already seeing actuator-related symptoms, this internal diagnostic guide is a good next step: ball valve actuator failure signs.
Ball valves vs butterfly valves (quick comparison for spec decisions)
In water, HVAC, and large-diameter lines, the “ball valves vs butterfly” decision comes up constantly. In my experience, ball valves win on tight shutoff and robustness in many chemical services, while butterfly valves often win on cost and weight at larger sizes.
Use this quick decision lens:
- Choose ball valves when you need tight isolation, higher pressure ratings, or challenging media.
- Choose butterfly valves when diameter is large, budget is tight, and a resilient/HP butterfly meets shutoff class.
For a deeper decision framework, see choose flow control vs butterfly valve.
What standards and certifications matter for industrial ball valves?
Specifications depend on industry, but common checkpoints include:
- Pressure class & end connections (flanged, threaded, welded)
- Fire-safe design for hydrocarbons (often required in refining)
- Fugitive emissions performance (packing and stem sealing)
- ATEX suitability when actuated in explosive atmospheres (actuator certification matters too)
For broader industrial context, many manufacturers publish selection and application notes; for example, Industrial Ball Valve Manufacturer provides an overview of industrial ball valve offerings and served industries.
Why AOX is a practical fit for automated ball valves
For plants standardizing automated ball valves, the actuator supplier’s reliability and support model matters as much as the valve body. AOX (Zhejiang Aoxiang Auto-Control Technology Co., Ltd.) brings a few operational advantages that typically move the needle in procurement and maintenance:
- 30+ years in electric and pneumatic actuation with global distribution (500+ distributors).
- CE/ATEX-certified actuators for regulated and hazardous environments.
- Engineering features aligned with field realities: dynamic braking, overload protection, and remote monitoring options.
- Supply chain benefits: factory-direct pricing (often ~20% cost reduction), 15-day delivery, and low MOQ (5 units)—useful for spares and phased rollouts.
- Track record: partnerships with major enterprises and a stated 99.8% customer satisfaction across 50+ markets.
In short: if your ball valves are becoming part of a digital maintenance program (condition monitoring, remote status, faster troubleshooting), actuator capability is no longer optional.
Conclusion: Build a ball valve spec you won’t regret in year two
Ball valves look simple, but a good industrial result comes from matching valve type + materials + seat choice + actuator torque margin to real operating conditions. I’ve seen the best reliability when teams treat ball valves as a system—valve, actuator, controls, and maintenance access—rather than a line item. If you’re planning an automation upgrade, standardizing on well-supported actuators (with diagnostics and certifications) can cut downtime more than any single “premium” valve feature.
FAQ: Ball valves (common search questions)
1) What is a ball valve used for?
Ball valves are mainly used for fast, reliable on/off isolation of liquids and gases in residential, commercial, and industrial piping.
2) Are ball valves better than gate valves?
For quick shutoff and tight sealing, ball valves are often better. Gate valves can be useful for certain large lines and lower-cost isolation, but they’re slower and can be less tolerant of frequent cycling.
3) Can you throttle flow with a ball valve?
A standard ball valve is not ideal for throttling because partially open positions can damage seats and cause unstable flow. If control is required, consider a V-port ball valve or a dedicated control valve.
4) What is the difference between full port and reduced port ball valves?
Full port ball valves have a bore close to the pipe ID for low pressure drop; reduced port valves have a smaller bore and are often more compact and economical.
5) How do I choose seat material for ball valves?
Match seat material to temperature, chemical compatibility, and solids/abrasion. PTFE/RPTFE is common for tight shutoff; PEEK and metal seats handle tougher temperature/wear conditions.
6) Should I use an electric or pneumatic actuator for ball valves?
Use electric when you want easy power/control integration and monitoring; use pneumatic when fast action and simple fail-safe behavior are priorities (and instrument air is reliable).
7) Why is my ball valve hard to turn?
Common causes include debris, seat swelling, corrosion, high differential pressure, or undersized actuators. Verify operating conditions and torque requirements before replacing components.
